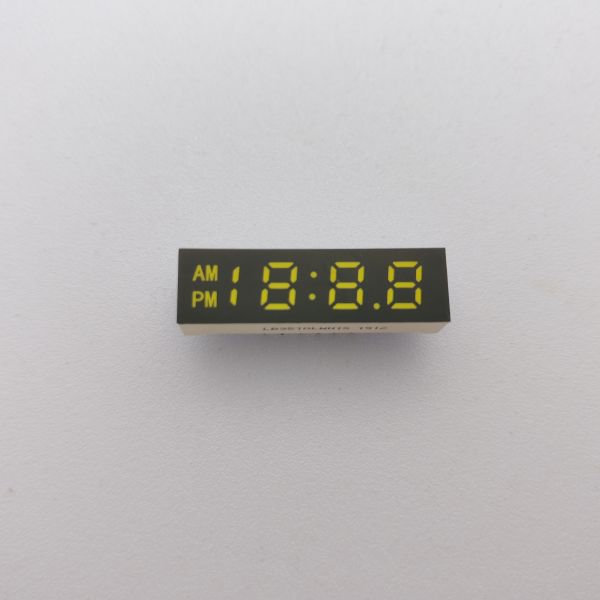

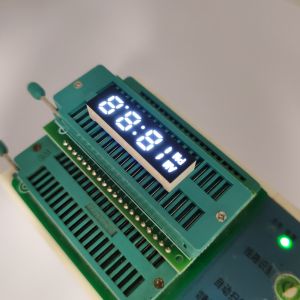

3 Digit 7 Segment LED Display for Timer Control
This 3-digit 7-segment LED display is specifically designed for timer control applications, offering excellent visibility and reliability in various industrial and commercial settings.
Product Specifications
| Dimensions |
35×10×7.2mm |
| Digit Height |
6.5mm |
| Polarity |
Common Cathode |
| Pin Type |
SMD |
| Emitting Color |
Ultra Bright White |
| Application |
Timer Control |
| Working Temperature |
+105°C to +120°C |
| Available Colors |
Red, Blue, Green, White, Amber, Orange |
LED Color Options & Technical Parameters
Yellow Green (Code: J/JU)
Vibrant yellow-green display offering optimal visibility with warm, inviting illumination perfect for timer applications.
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
- |
2.4 |
V |
| Reverse Voltage |
Vr |
Ir=10uA |
5 |
- |
- |
V |
| Luminous Intensity |
Iv |
If=10mA |
30 |
- |
40 |
mcd |
| Wavelength |
Dλ |
If=10mA |
569 |
- |
574 |
nm |
Amber/Yellow (Code: Y)
Warm amber/yellow hue providing excellent visibility with comfortable, attention-grabbing illumination.
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
- |
2.5 |
V |
| Luminous Intensity |
Iv |
If=10mA |
60 |
- |
80 |
mcd |
| Wavelength |
Dλ |
If=10mA |
585 |
- |
595 |
nm |
Orange (Code: F)
Energetic orange color delivering high visibility with vibrant, dynamic illumination.
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
- |
2.4 |
V |
| Luminous Intensity |
Iv |
If=10mA |
60 |
- |
80 |
mcd |
| Wavelength |
Dλ |
If=10mA |
600 |
- |
605 |
nm |
Super Bright Red (Code: R)
High-intensity red display offering maximum visibility and attention-commanding presence.
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
- |
2.2 |
V |
| Luminous Intensity |
Iv |
If=10mA |
50 |
- |
60 |
mcd |
| Wavelength |
Dλ |
If=10mA |
630 |
- |
635 |
nm |
Ultra Bright Red (Code: UR)
Maximum intensity red with unparalleled brightness for critical visibility applications.
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
1.8 |
- |
2.2 |
V |
| Luminous Intensity |
Iv |
If=10mA |
80 |
- |
100 |
mcd |
| Wavelength |
Dλ |
If=10mA |
625 |
- |
635 |
nm |
Pure Green
Crisp green illumination ideal for eco-friendly designs and applications requiring natural, refreshing visual appeal.
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
2.6 |
- |
3.2 |
V |
| Luminous Intensity |
Iv |
If=10mA |
120 |
- |
180 |
mcd |
| Wavelength |
Dλ |
If=10mA |
515 |
- |
525 |
nm |
Ultra Bright Blue (Code: BH)
Vibrant blue illumination providing modern, sophisticated aesthetic with excellent visibility.
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
2.8 |
- |
3.2 |
V |
| Luminous Intensity |
Iv |
If=10mA |
120 |
- |
140 |
mcd |
| Wavelength |
Dλ |
If=10mA |
460 |
- |
465 |
nm |
Ultra Bright White (Code: WH)
Pristine white illumination offering maximum clarity and sophisticated visual appeal.
| Parameter |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Forward Voltage |
Vf |
If=10mA |
2.8 |
- |
3.2 |
V |
| Luminous Intensity |
Iv |
If=10mA |
120 |
- |
140 |
mcd |
| Color Temperature |
K |
If=10mA |
5500 |
20 |
6800 |
K |
Absolute Maximum Ratings (Ta=25°C)
| Parameter |
Symbol |
Ratings |
Unit |
| Forward Current (per dice) |
Ipm |
20 |
mA |
| Reverse Voltage (per dice) |
Vr |
5 |
V |
| Power Dissipation (per dice) |
Pm |
80 |
mW |
| Operating Temperature Range |
Topr |
-40 to +85 |
°C |
| Storage Temperature Range |
Tstg |
-40 to +85 |
°C |
| Solder Temperature (≤3 seconds) |
Th |
260 |
°C |
Manufacturer Information
Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality LED display solutions with unwavering commitment to excellence and reliability.
Product Applications
Our 3-digit 7-segment LED displays are engineered for seamless integration into various applications including household appliances, temperature and humidity monitoring systems, refrigerator controllers, thermostats, and HVAC systems. These displays combine advanced technology with elegant design to deliver outstanding performance and peerless quality.
